Product Details
＋

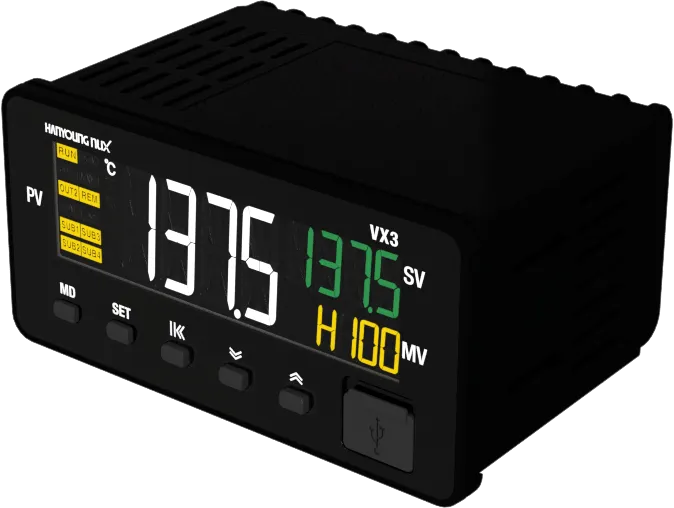

VX3-UMND-A4T, Temp Controller/Indicator, 48x96mm, 24VDC, Multirange Input, 4-20mA PV Retransmission Output, 3 Alarms, Can replace Shinko JIR301M1
- Multirange Input (Programmable)
- 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response)
- Drip-proof / Dust-proof IP65 (front panel only)
- UL/CE Approved
- Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- Each unit needs just 60 mm depth panel space
- EC Compliant
Specification
| Hanyoung Nux Part Number | VX3-UMND-A4T |
| Control Output 1 (Heat) | Relay |
| Control Output 2 (Cool) | 4-20mA PV Retransmission |
| Input | Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. |
| Alarm | 4 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) |
| Option 1 | 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) |
| Option 2 | N/A |
| Mounting Style | 48 x 96mm Panel Mount |
| Supply Voltage | 24VDC |
| Termination Style | Screw |
| Weight | 350g |
| Factory Pack Qty | 1 |
| ROHS | Yes |
| UL | Yes |
| CE | Yes |
