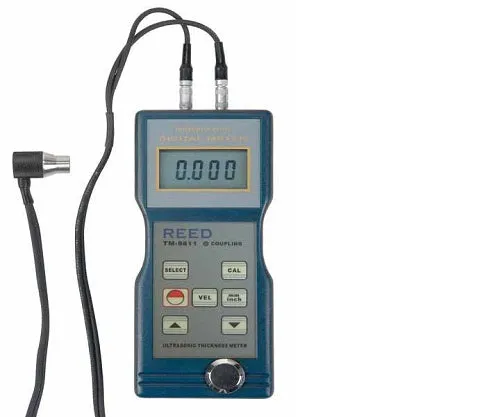

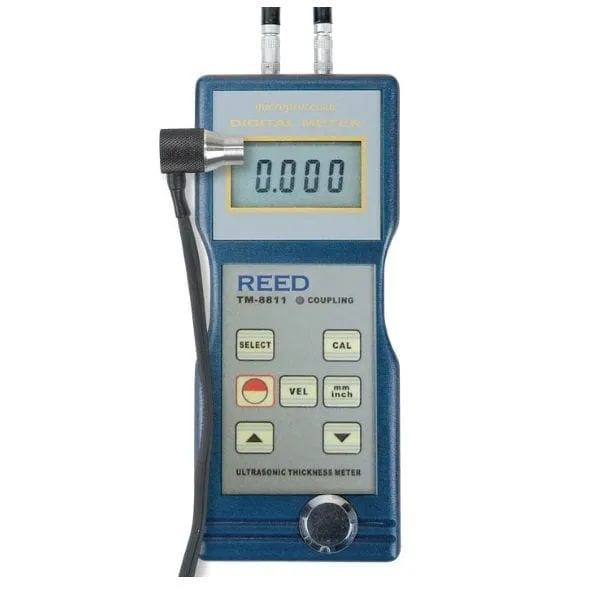

REED TM-8811 Ultrasonic Thickness Gauge with ISO certificate
$
66.96
$
51.51
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW
Quick responding and high accuracy with LCD display.
This ultrasonic thickness gauge has an easy-to-read LCD display and is designed to measure the thickness of 10 preset materials. The TM-8811 features a built-in calibration function, low battery indicator and includes couplant.
Features
- Measures the thickness of steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron
- Easy-to-read LCD display
- Displays sound velocity at the touch of a button
- Automatic material calibration
- User selectable unit of measure (in/mm)
- Low battery indicator
REED TM-8811 Specifications
| Measuring Range | 0.05 to 7.9" (1.5 to 200mm) |
| Accuracy | ±(0.5% 0.1mm) |
| Resolution | 0.004"/0.1mm |
| Velocity Range | 500 to 9000 m/s |
| Compatible Materials | Steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron |
| Sampling Time | Less than 1 sec. |
| Display | 4-Digit, LCD |
| Probe Length | 3' (36") |
| Low Battery Indicator | Yes |
| Power Supply | 4 AA Batteries |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 80% |
| Dimensions | 6.3 x 2.7 x 1.25" (161 x 69 x 32mm) |
| Weight | 9oz (258g) |
Included with the REED TM-8811
- Ultrasonic Thickness Gauge
- Ultrasonic Couplant Gel
- Probe
- Hard Carrying Case
- Batteries
