Product Details
＋

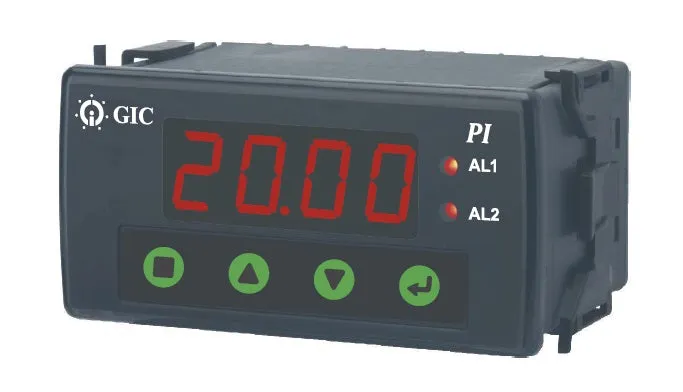

PIB12C, 48x96mm, Panel Meter, DC Ammeter DC Voltmeter Input 0-10V/4-20mA/RTD/Thermocouple, 2 x Alarm Outputs SPDT 5A @ 250VAC/24VDC (SPDT), Retransmission Output 0-20mA/4-20mA/0-10V/0-5V, 24VDC Sensor Supply, 85-270VAC/DC Supply, Modbus RS485
- Fixed Zero and Span Setting
- Adjustable Display Scaling
- 4 Digit LED Display
- 100mS Response Time
- PC 94 UL V0

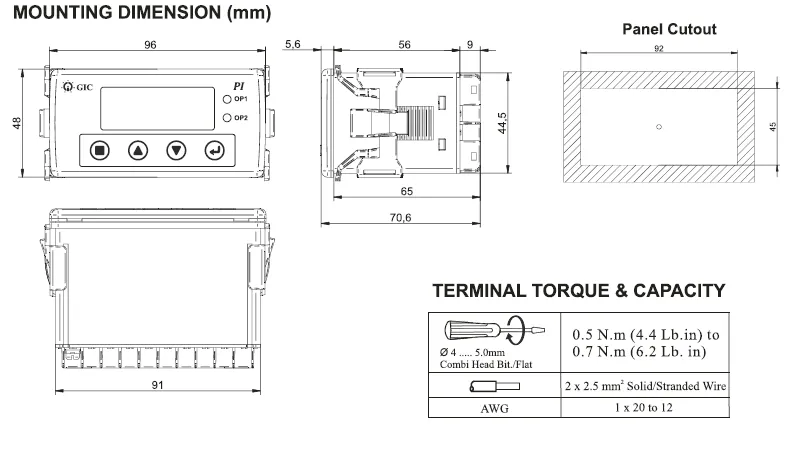

- Each unit needs just 96 x 48mm Panel Space
- 65mm Depth
- CE Approved
Specification
| Fastron Electronics Part Number | PIB12C |
| Conditioner Output | 0-20mA/4-20mA/0-10V/0-5V, |
| Input | 0-10V/4-20mA/RTD/Thermocouple |
| Retransmission | Programmable 0-20mA/4-20mA/0-10V/0-5V |
| Over Range | x 1.5 |
| Loop Sensor Supply | 24VDC @ 30mA |
| Relay Outputs | 2 Relays with 1 x NO, 1 x NC (SPDT ) 5 Amp @ 250VAC/24VDC |
| Operating Temperature | 0 - 60°C |
| SupplyVoltage | 85-270VAC/DC |
| Span Adjustment Range | N/A |
| Zero Adjustment Range | N/A |
| Termination Style | Screw |
| Display Type | 4.0 Digit RED LED |
| Mounting Style | 96 x 48mm Panel Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 250g |
| Factory Pack Qty | 1 |
