| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |
| Function | Speed and Direction Sensor |
| IP Rating | IP69k |
| Output | Digital |
| Sensing Mode | Quadrature |
| Series | |
| Supply Voltage | 4.5-26 VDC |
| Termination | Cable |
| Type | Speed |
Overview
SNG-Q Series

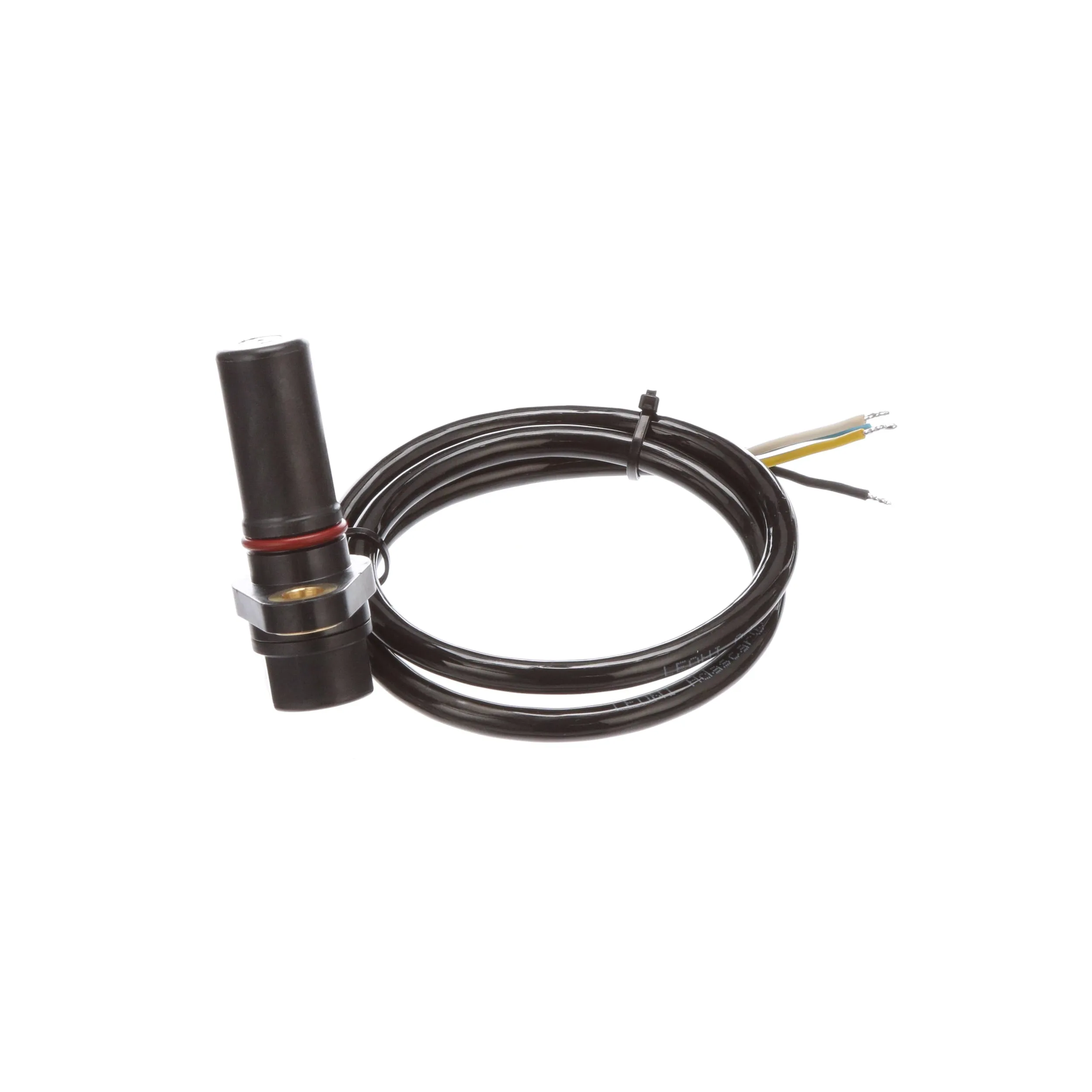

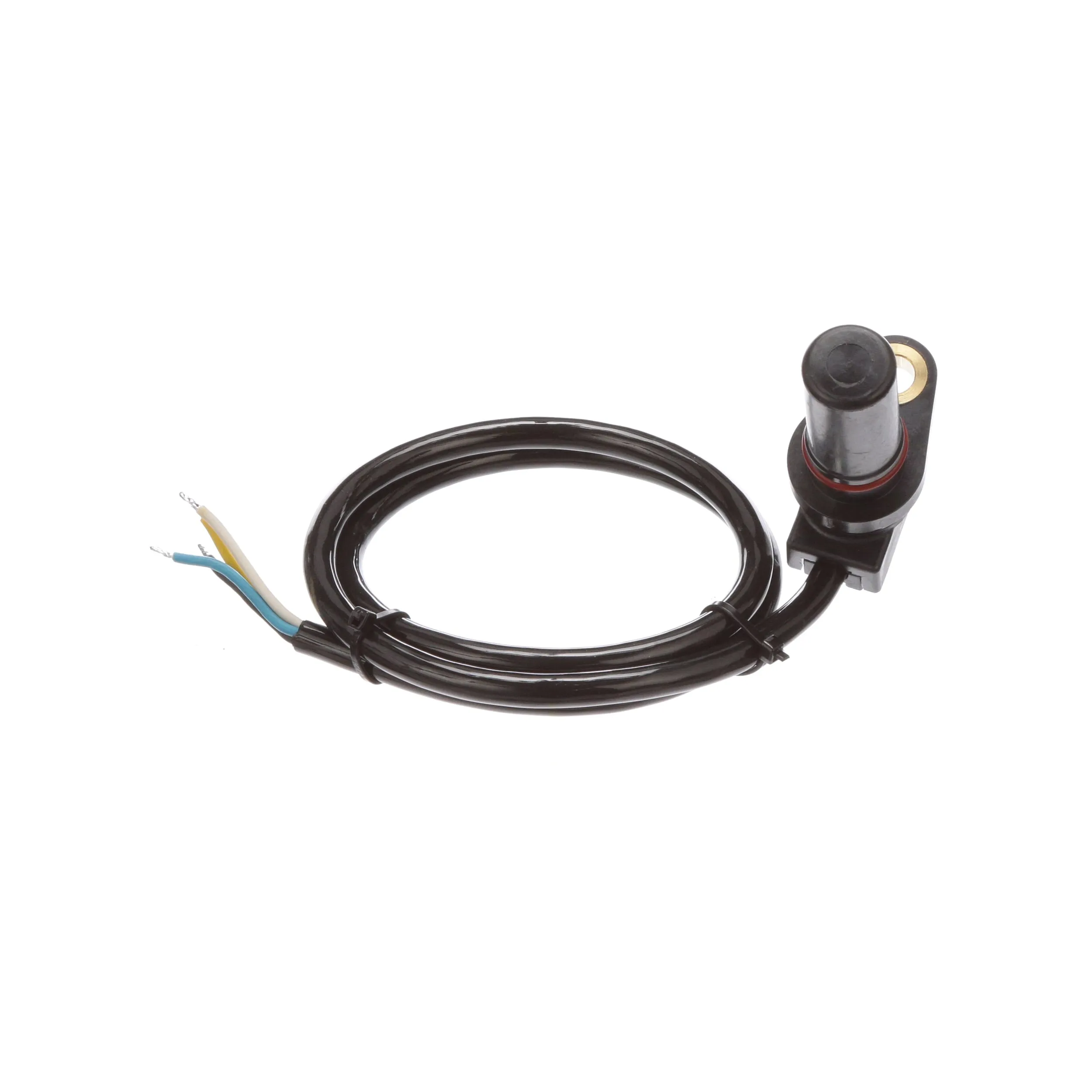

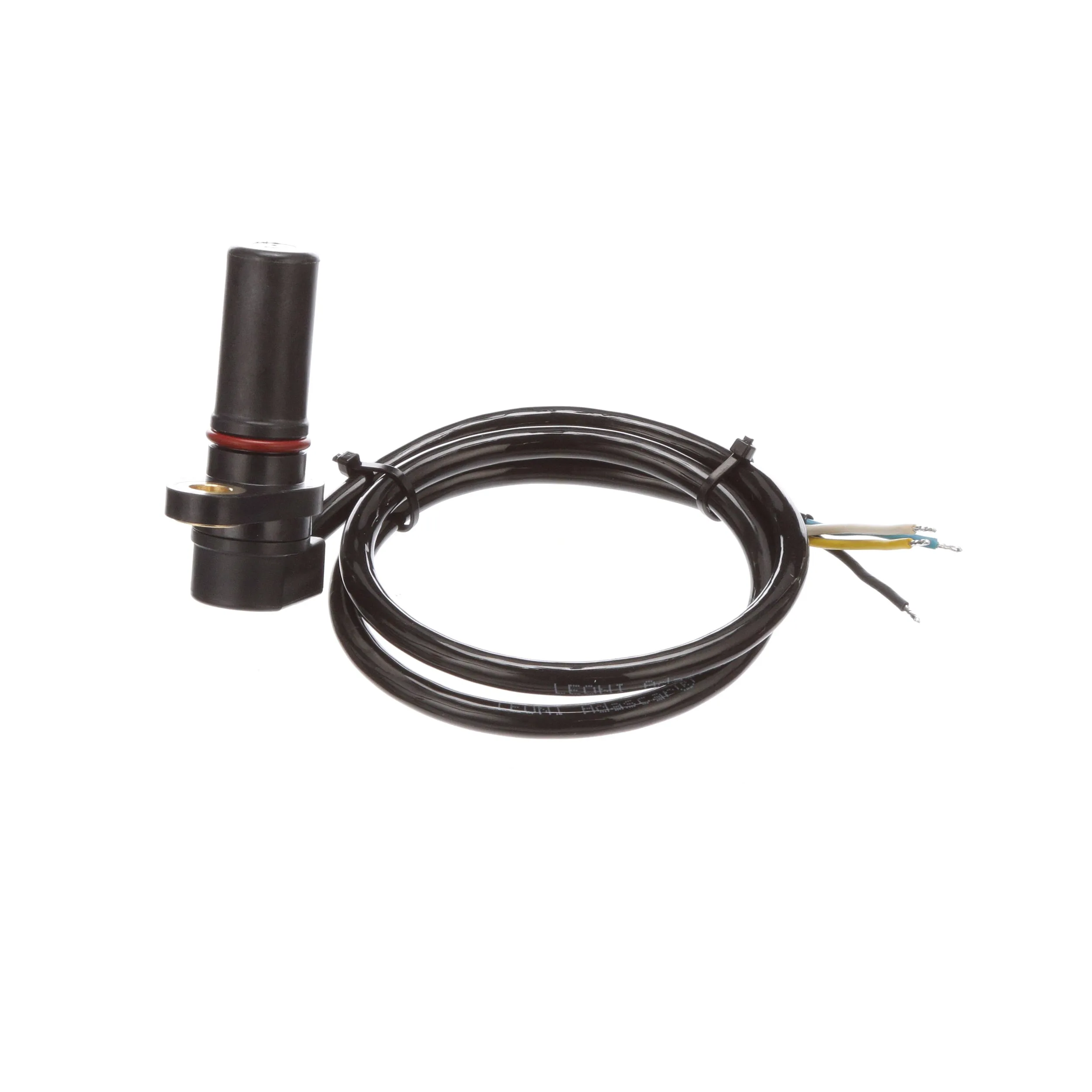

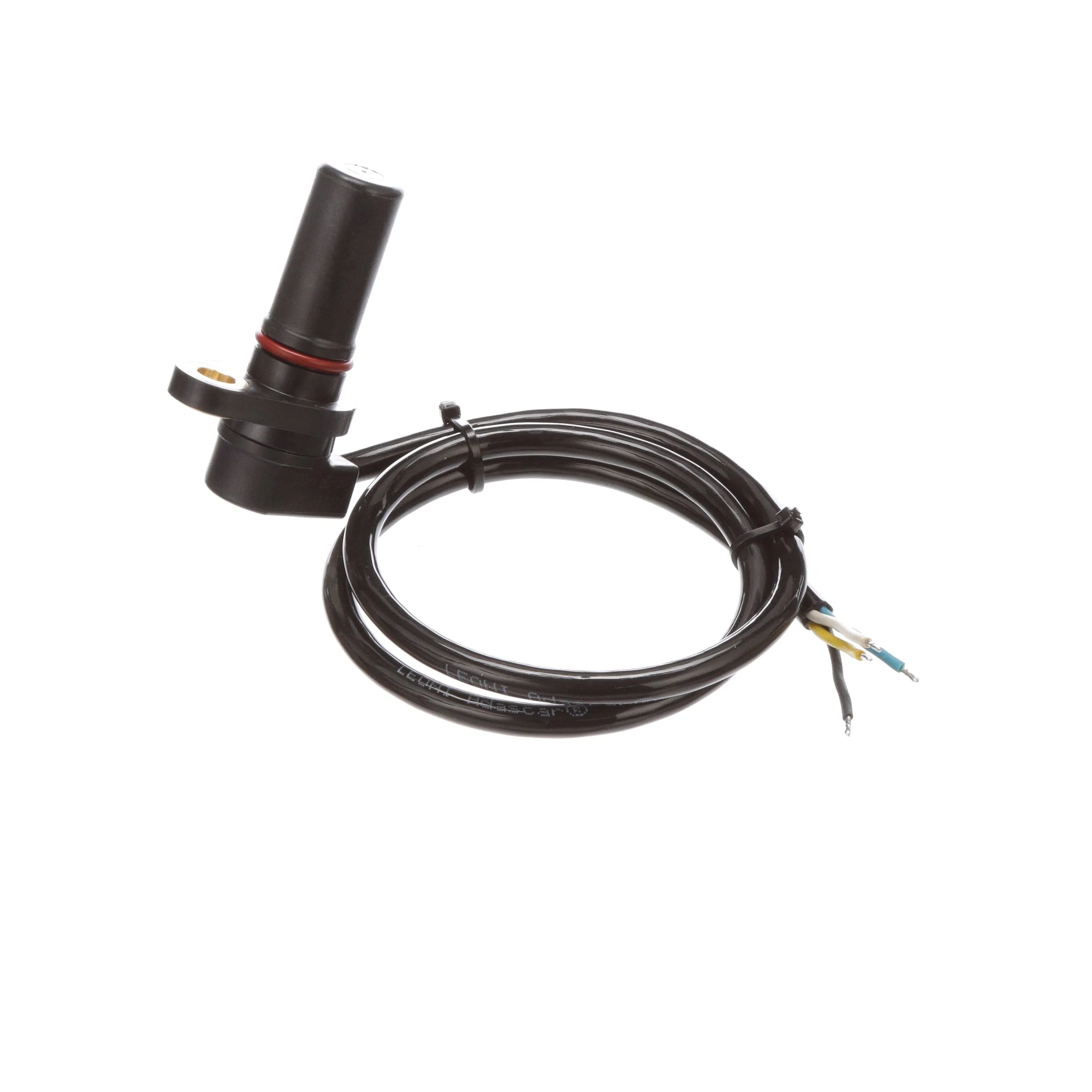

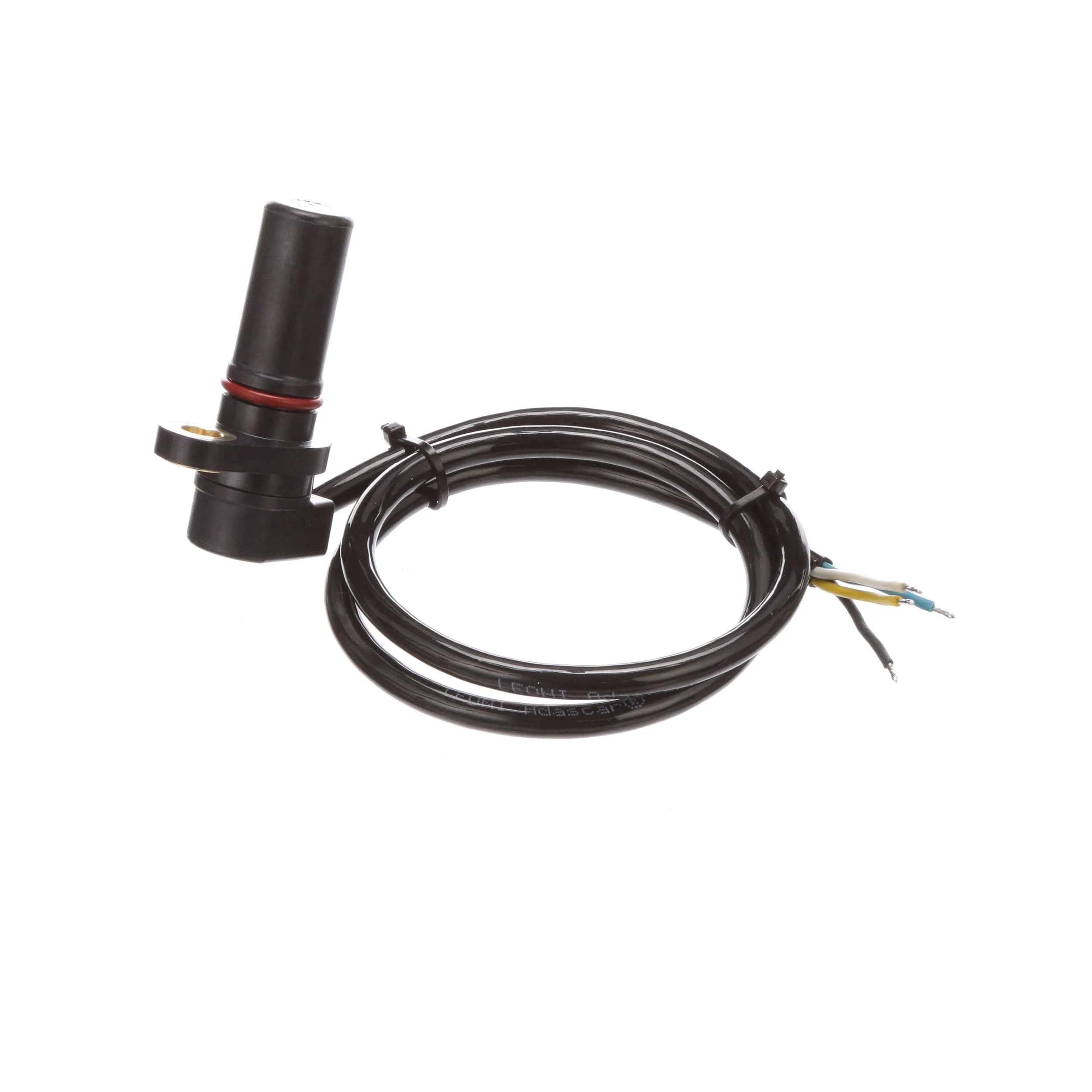

Honeywell's SNG-Q Series Quadrature Speed and Direction Sensor with 4-wire quadrature sensing is the first release of the new SNG-Q Series Speed Sensor Platform. The sensor design and manufacturing use a platform-based approach that enables cost-competitiveness and mechanical and electrical configurability.
The SNG-Q Series provide both speed and direction information. Speed information is provided from digital square wave outputs; direction is provided using a quadrature output with signals 90° phase shifted from each other. With the quadrature output, target direction is determined by output lead/lag phase shifting.
This product is designed for applications where enhanced accuracy is required to detect small target features. This accuracy is enabled by dual differential Hall-effect sensor IC technology. The SNG-Q Series is designed for a wide operating temperature range, robust electrical noise immunity and industry leading environmental sealing capability.
This product includes an O-ring seal for pressure applications, and a fixed mounting flange for simple installation using one fastener.
