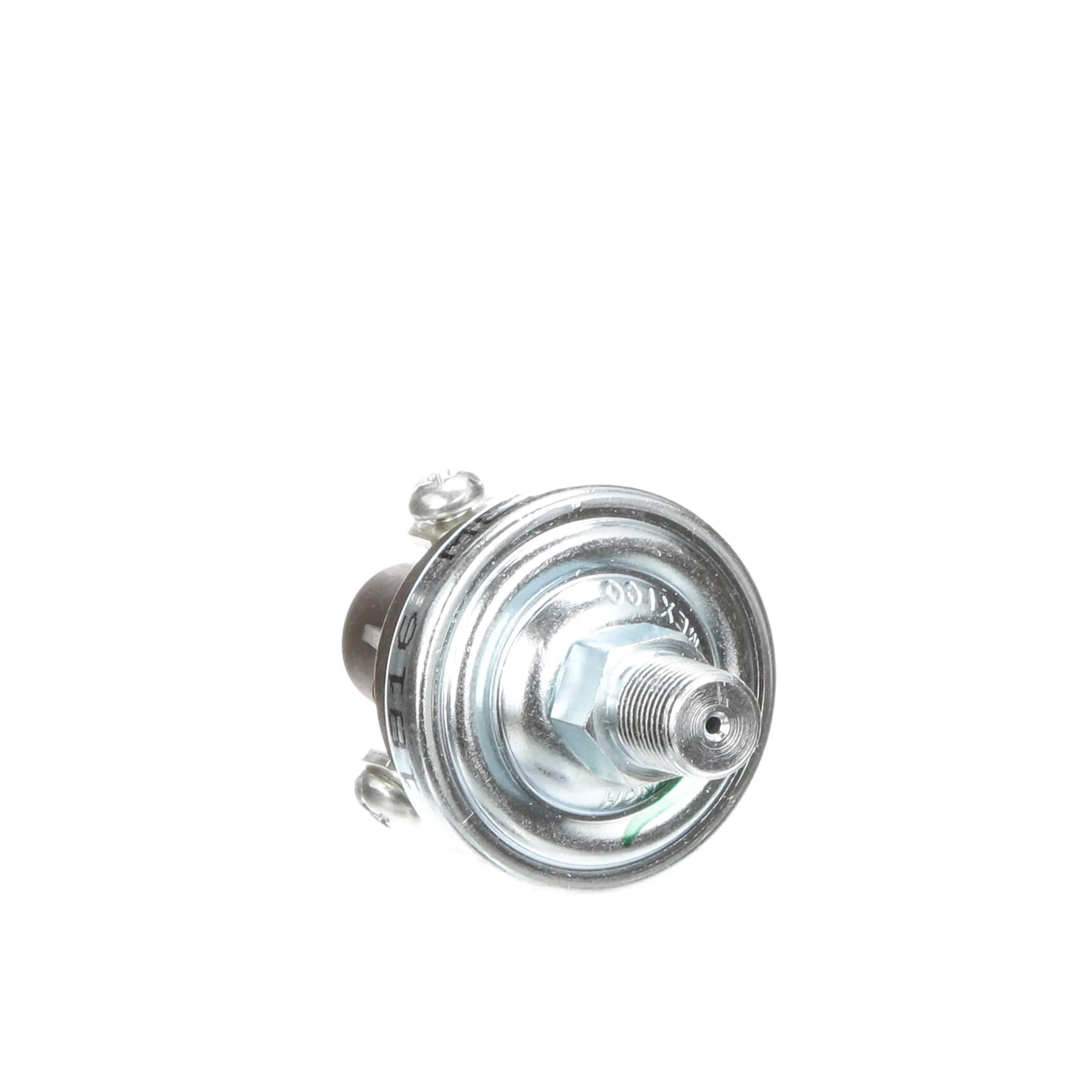

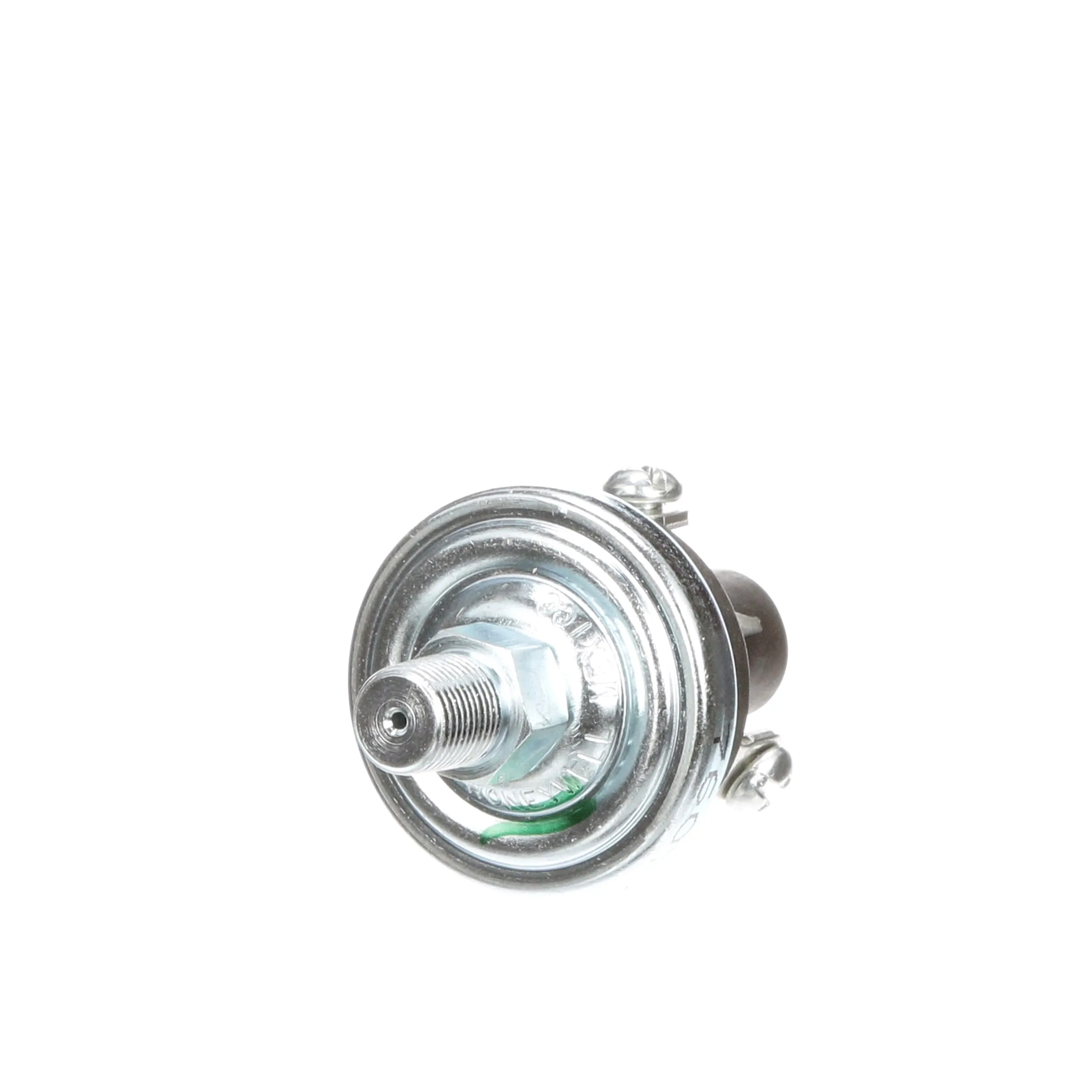

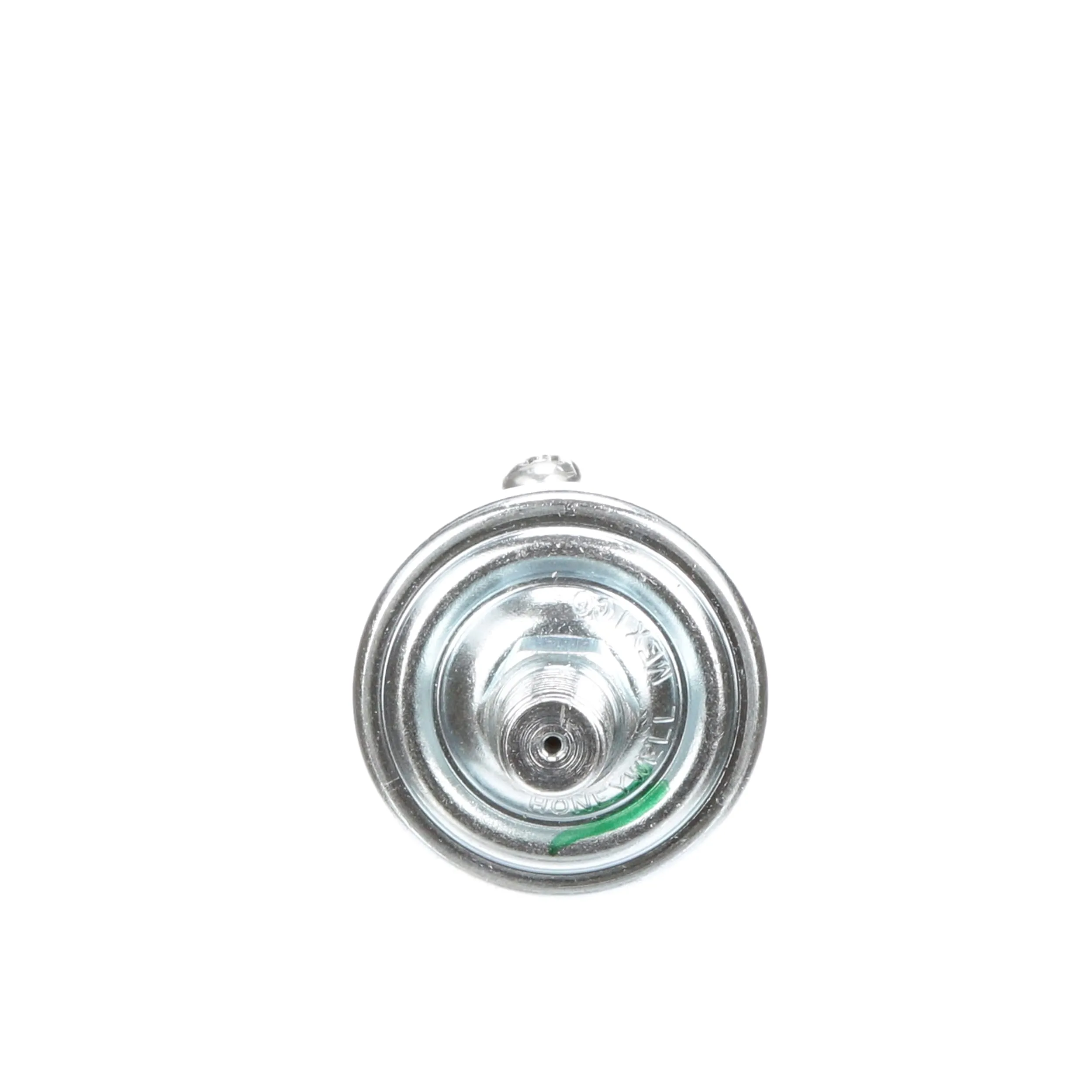

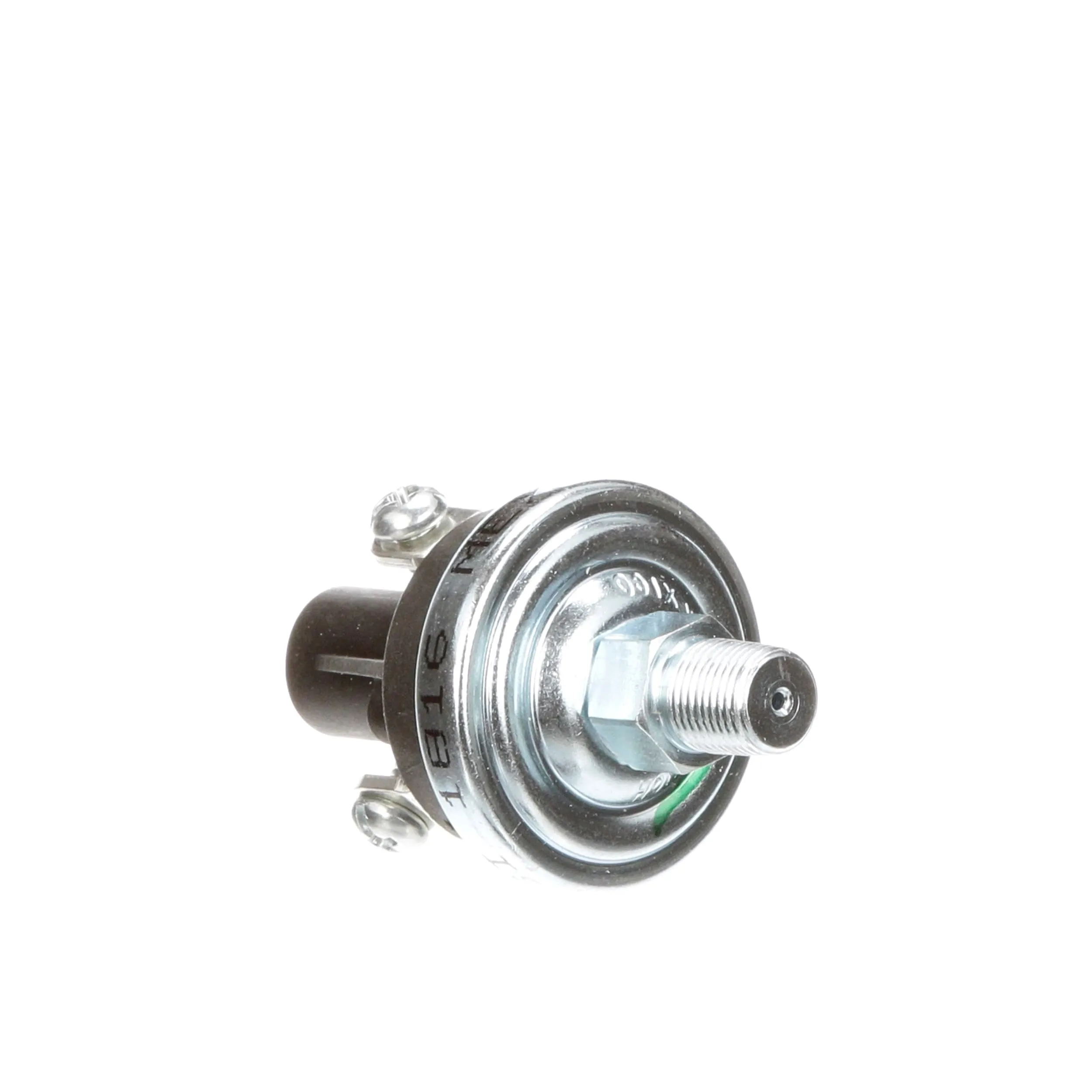

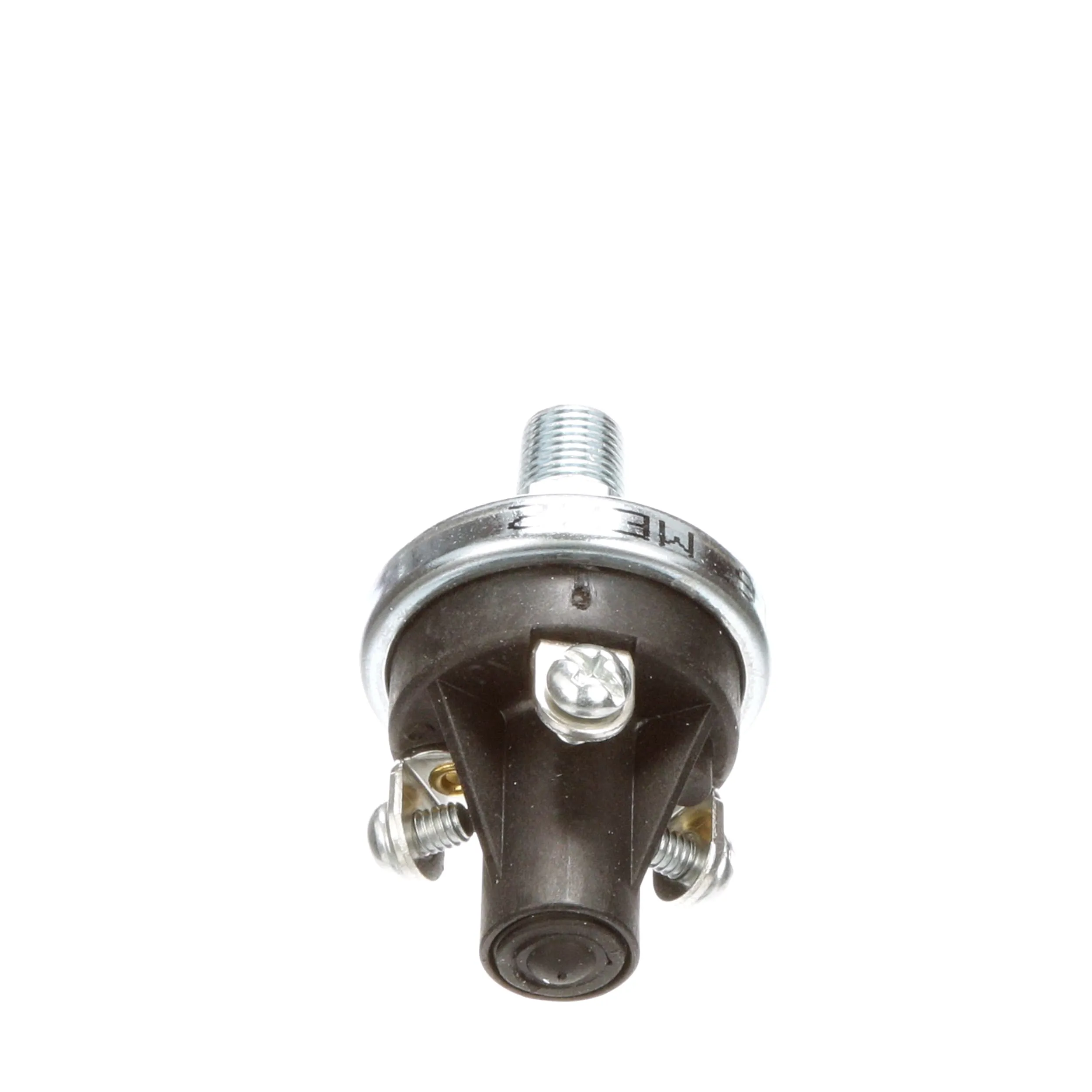

Name: Honeywell 76073-00000300-01
SKU: 808180

Product Details ＋

Product Attribute	Attribute Value
Function	Dual circuit, one adjustable circuit. Note: The NC circuit is the reference circuit for the dual circuit switch; the normally open circuit is not adjusted. Expected deadband between the NC and NO circuits is 15 PSI.
Measurement Range	35 psi
Measurement Units	psi
Mounting Type	1/8 in NPT
Output	SPST-NO
Package Type	Cylinder
Series
Special Features	Factory reference circuit set to 35 PSI and adjustable circuit may be set between 25 to 50 PSI plus or minus 5 percent.
Supply Voltage	24 VDC
Termination	Screws
Type	Gauge

Overview

Honeywell 5000 Series - Extended Duty Pressure Switch With Direct Action Blade Contacts:

5000 Series pressure switch with standard terminal.These switches sense a change in the pressure, opening or closing an electrical circuit when the designated set point is reached. Honeywell S&C offers an impressive line of standard products, but our engineering expertise and understanding afford us the ability to modify existing parts or create an original component per a customer's specifications.

Features:

Stands up to extended duty applications

Factory set, capable of field adjustment

Direct acting blade - gold-plated contacts

No dead band

Kapton diaphragm for compatibility with a variety of fluids

Various electrical connections and terminations

Optional rubber boot

Applications:

Engine transmission

Hydraulics and brakes

Power steering

Fuel pressure

ABS brakes
