Product Details
＋

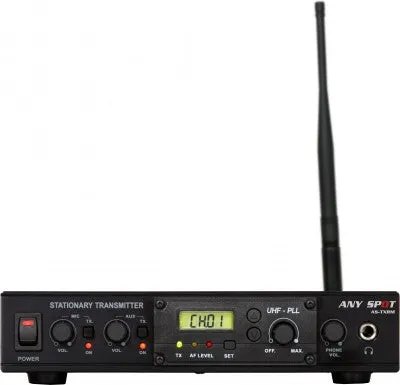

The Audio Link Transmitter will transmit audio signal to any of our Traveler® Series Speakers. It is designed to take a mixed signal and send it to the speakers wirelessly. The AS-TXRM can also act as the mixer; it’s easy with a XLR, 1/4", and RCA inputs between two channels, each having their own volume control. So a microphone, CD player, iPod®, etc can be inserted and transmitted to your speakers. The AS-TXRM can be rack mounted or placed on a table top.
- 96 selectable channels
- LCD display
- Channel selector
- UHF Frequency
- RF and AF indicator
- Volume control
AS-TXRM STAND ALONE WIRELESS AUDIO LINK TRANSMITTER FOR TRAVELER 8 & 10 SPECIFICATIONS
| RF output | 10mW |
|---|---|
| Spurious emission | Less than 250 nW |
| Display status | LCD indicator displays channel or frequency |
| Channel select | SET, UP, DOWN keys |
| Antenna | External |
| Dimensions | 8.375" x 8 " x 1.75 " (213 x 203 x 45 mm) |
| Weight | 2.8 lbs (1.27kg) |
| Controls | 1. Power Switch w/ LED 2. Mic Volume 3. Mic On/Off Switch 4. Mic On LED 5. Aux Volume 6. Aux On/Off Switch 7. Aux On LED 8. Transmitter Module 9. Headphone Volume |
| Inputs & Outputs | 10. Headphone Output 11. Antenna Connector 12. L/R Aux Outputs 13. L/R Aux Inputs 14. Balanced XLR Mic Input 15. 5v DC Mic Switch 16. Unbalanced 1/4" Mic Input 17. 12-15v DC Output 18. 12-15v DC Input |
