AEM 100 PSIg Stainless Steel Pressure Sensor Kit

Stainless steel sensors are recommended when the greatest accuracy is required, for example to measure manifold air pressure. AEM's sensor kits contain everything you need to mount a sensor, including connector, pins and 1/8 NPT fitting.

Specifications:

Accuracy: /- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 1000PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Stainless Steel
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current:
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

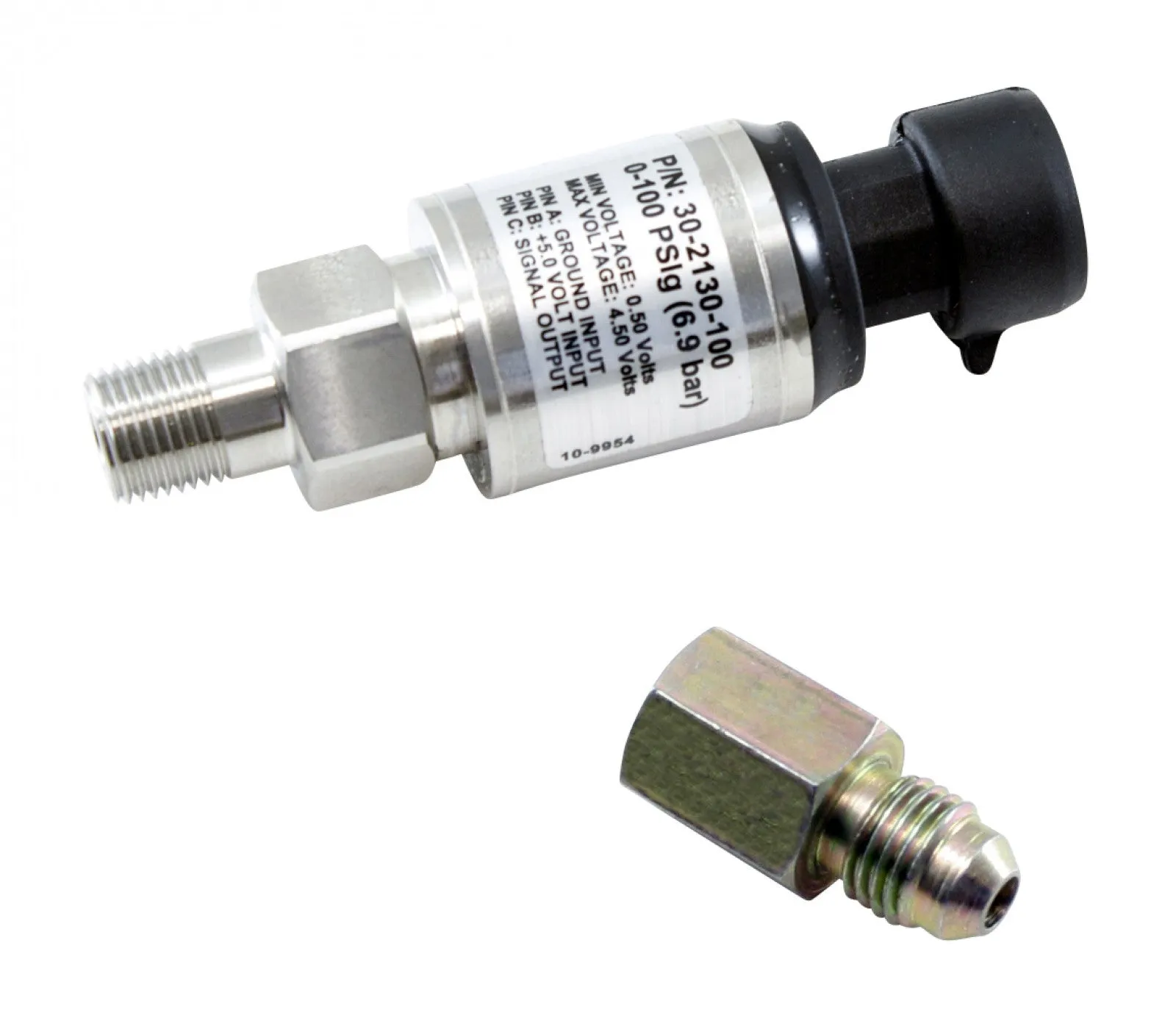

Includes: 100 PSIg Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter
